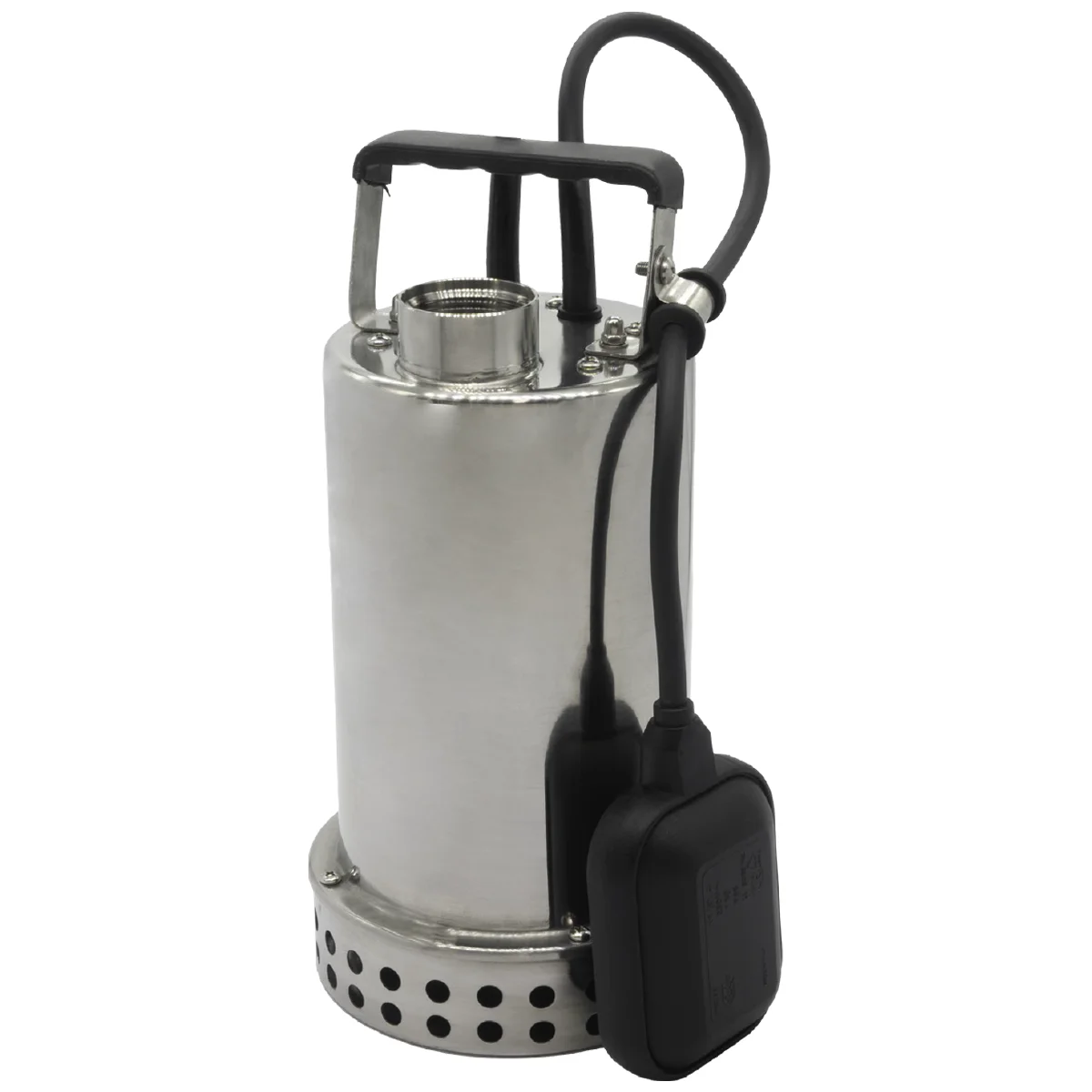

SDX

SDX

Scarica scheda tecnicaDownload the manual
Limits of use:
- Liquid temperature up to 35°C
(for domestic use according to EN 60335-2-41)
- Max. liquid temperature: 35°C (for other uses)
- Immersion depth 5 m
- Solid passage SDX 400 Ø 4 mm
- Solids passage SDX 1100 Ø 4 mm
- Min. suction level SDX 400 20 mm
- Min. suction level SDX 1100 30 mm
Engine:
- Built-in automatic reset current protection
- Built-in permanent capacitor
- Insulation Class F
- IP 68 protection
- Power supply cable 10 m
- Standard float switch
Material:
- Handle Polypropylene
- Pump body Stainless steel
- Impeller Noryl
- Motor housing Stainless steel
- Drive shaft Stainless steel
- Mechanical seal
MODEL PHASE NOMINAL POWER POWER CONSUMPTION PERFORMANCE SHOUTS
HP kW kW Q (L/min) H (m) asp. mand.
SDX 400 Single-phase 0.4 120 6.5 1″ 1/4
SDX 1100 Single-phase 1.1 280 9 1″ 1/2
Applications

Residential Civil Home

Curva prodotto

https://euromatic-pumps.it/wp-content/uploads/sdx.jpg

HYDRAULIC CURVE

https://euromatic-pumps.it/wp-content/uploads/sdx.jpg

Pump body material

Stainless Steel AISI 304

Prevalenza Massima (m)

9

Portata Massima (L/min)

280

Immagine Personalizzata del Prodotto

SDX-1000.pdf

Download(235 KB)
